• MİMSAN MG Series three-pass liquid and gasfuel steel hot water boilers are specially designed for central heating systems with their high combustion efficiency, optimum chimney gas emission values, silent operation and long service life.

Central Heating Boiler

HS Code : 840310

Certificates : certificate certificate certificate certificate

Product Details

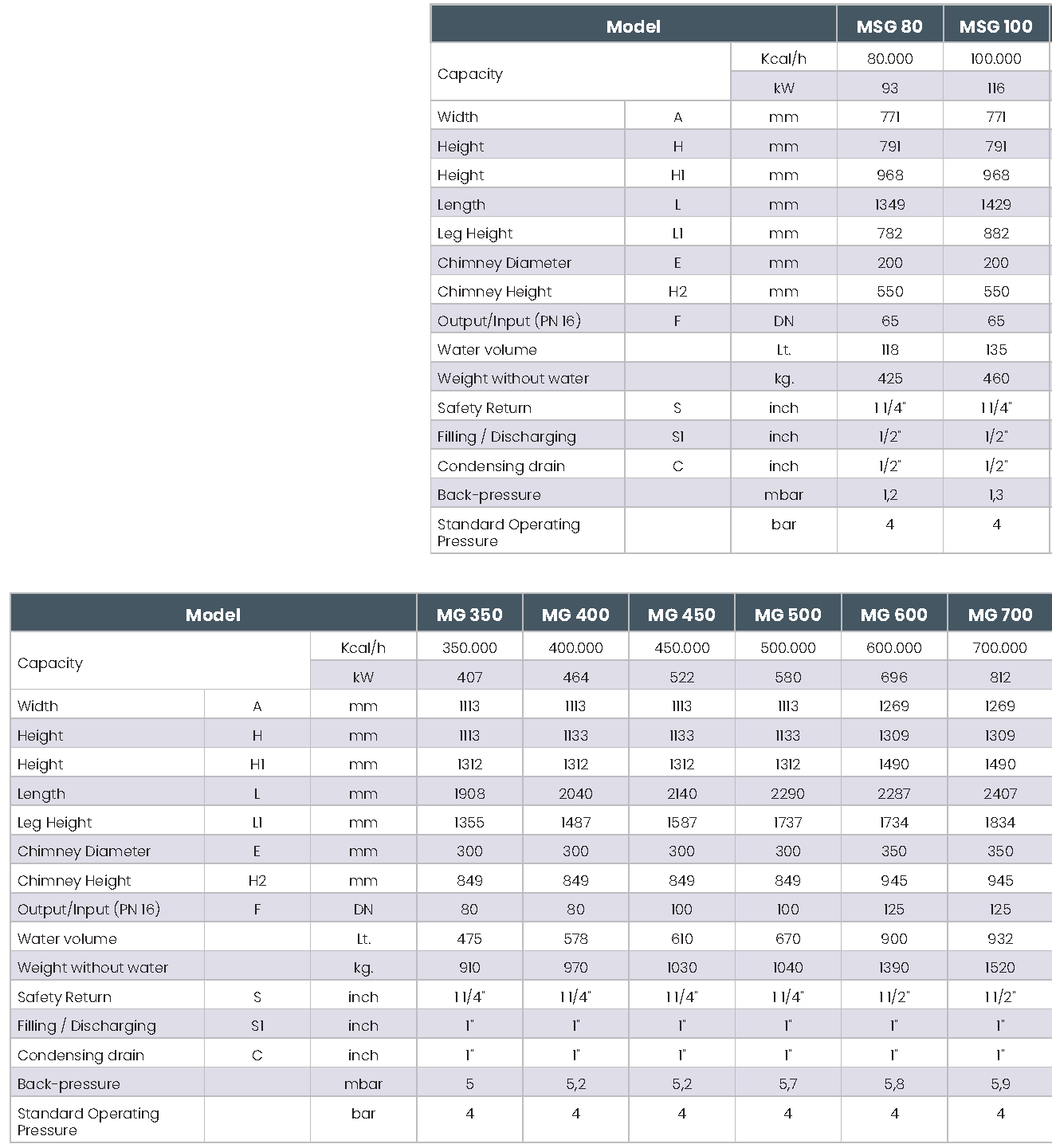

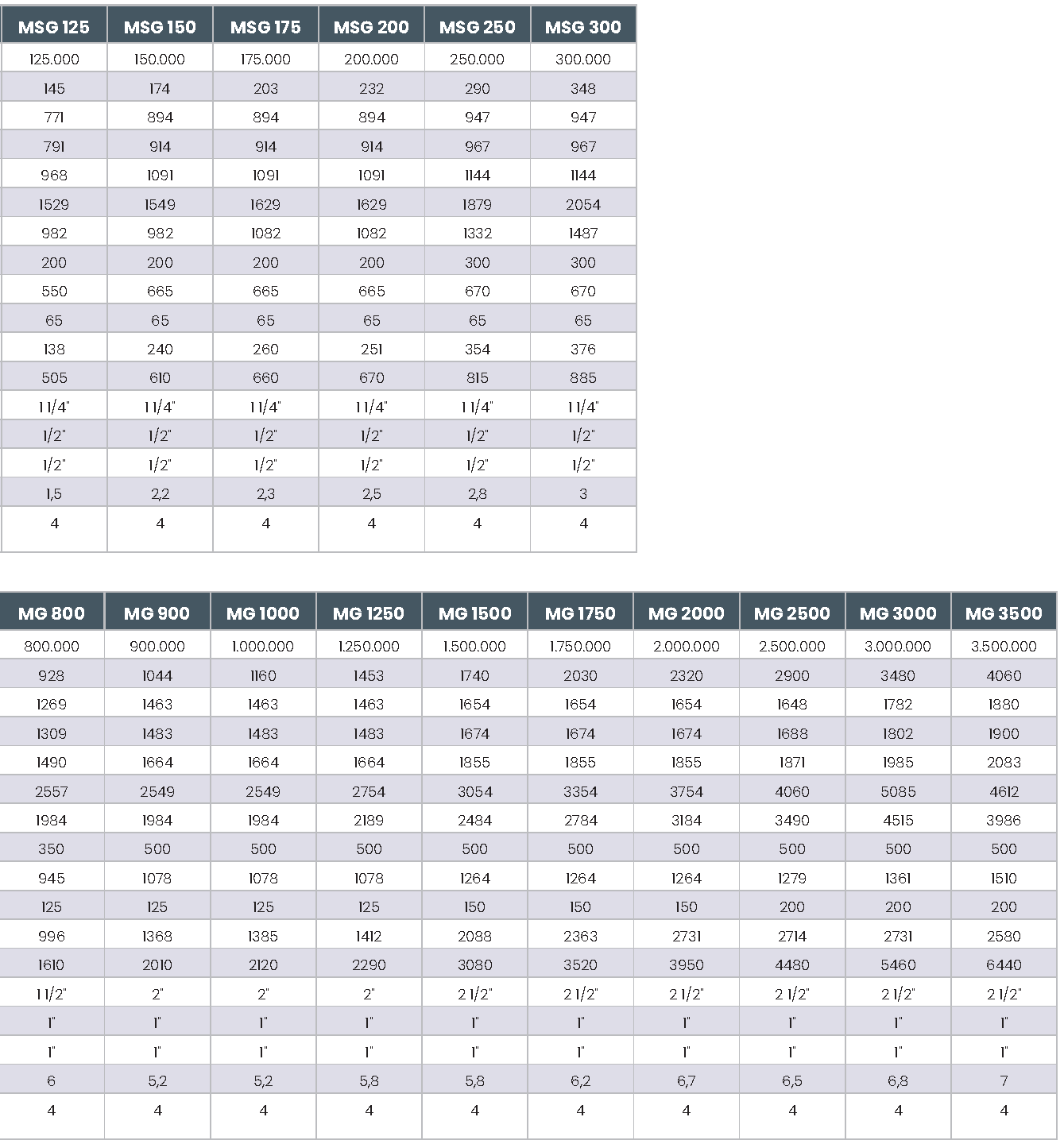

Technicial Specifications

Other products

About the Company

Contact

High combustion efficiency up to 95%

Window type flame breakers (Turbulators) in the second pass pipes

Suitable for standard conduit burner use

Microprocessor control panel that can be controlled to the burner and pump system

Siemens Albatros Series RVS Model Control Panels offering comfort and economy together (Optional)

Water-cooled valve system

Full-cylindrical boiler body

Body covered with electrostatic powder paint on galvanized sheet metal

80 mm thick mineral-based insulation material on the body and front cover

Compatibility with integrated and external stainless economizer applications

3.1 certified boiler Pipe compatible with 10217-2 norm
