Elastomeric Rubber Foam

  • ODE R-FLEX SHEET
  • It is a closed-cell thermal insulation material manufactured from elastomeric rubber foam material in the form of sheets.
  • It is the insulation material of choice for air conditioning and cooling systems for its thermal insulation performance and high water vapor resistance. The product is ideal for insulating large diameter pipes, and ventilation ducts with rectangular or round cross sections. It is manufactured in various thicknesses and widths.

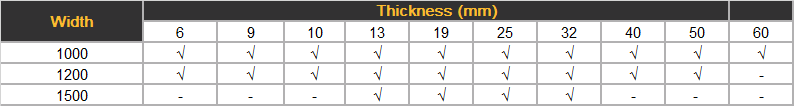

  • It can be produced in the range of 6-60 mm thickness.

Elastomeric Rubber Foam

HS Code : 400811

Certificates : certificate certificate certificate certificate

Product Details

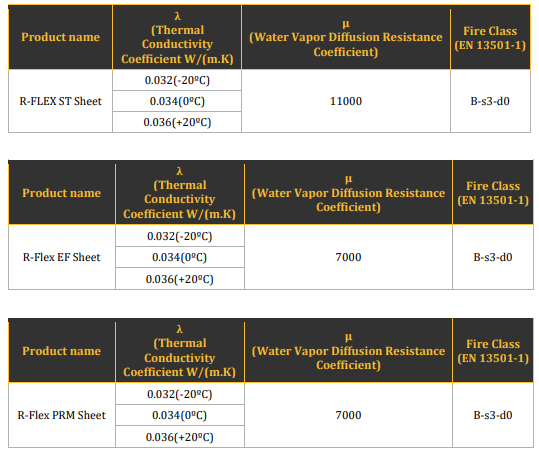

Technicial Specifications

Other products

About the Company

Contact

ODE R-FLEX Sheet is manufactured in to three groups, ST,EF and PRM, and with various types of facing.



PROPERTIES:



  • Provides high performance thermal insulation with low thermal conductivity coefficient.
  • It protects the installation against condensation with its high water vapor diffusion resistance coefficient
  • Increases energy efficiency.
  • It has closed pores.
  • Protects the system against corrosion under insulation (CUI)
  • It has a smooth, uniform surface structure with the improved process.(ST,EF)
  • Does not retain dust and dirt.
  • It is not affected by mold and microorganisms and has antimicrobial properties.
  • It can be produced in various thicknesses and widths.
  • Ideal for insulation of large diameter pipes, rectangular and circular cross-section ventilation ducts.
  • It can be produced in the thickness range of 6-60 mm.
  • It is flexible and easy to apply.
  • Protects the installation against corrosion.
  • Extends the working life of the installation.
  • EPD Certificate (Environmental Product Declaration) provides 2-18 additional points for projects with green building certification systems such as LEED, BREEAM, DGNB.




LAMINATED PRODUCTS:



ODE R-FLEX’s laminated products are;

R-FLEX AL-CLAD (Aluminium Cladding)

R-FLEX CLASS 0 ALU (Fireproof Aluminum Foil)

R-FLEX ALU (Aluminium Foil Facing)

R-FLEX SA (Self Adhesive)

R-Flex ALU SA (Self adhesive and covered with aluminum foil)
