• Heating System : Two Pipe Flow
  • Mounting : Wall Mounted
  • Dimensions
  • Underfloor heating : 450 x 540 x 165 mm
  • Radiator heating : 450 x 400 x 125 mm
  • Casing : Painted Metal Sheet
  • Plate Heat Exchanger : Stainless Steel, Copper Brazed
  • Pipework : Stainless Steel Pipe With Brass Fittings
  • Insulation : EPP, ERF
  • All External Connections : G¾” Coupling

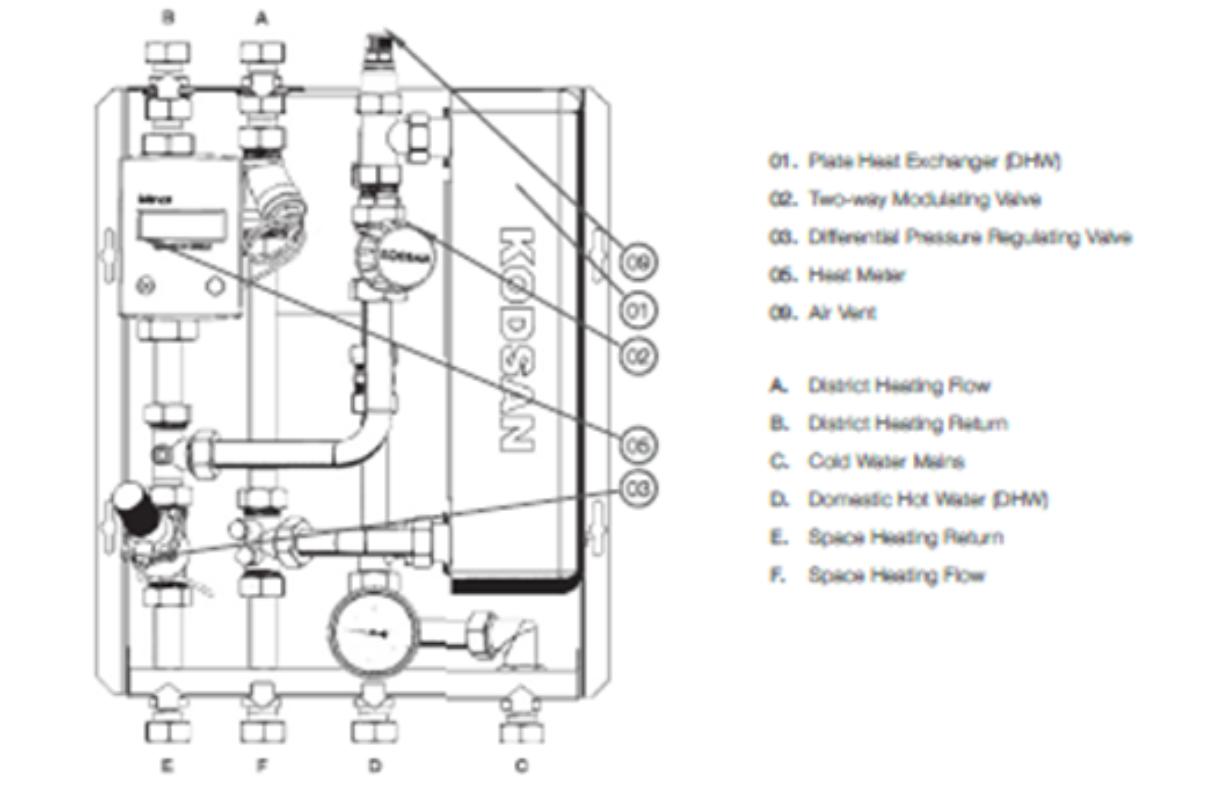

Flat Station

HS Code : 840410

Certificates : certificate certificate certificate

Product Details

Technicial Specifications

Other products

About the Company

Contact

PRIMARY CIRCUIT

Nominal Heat Capacity (*) : Domestic Hot Water: 7,3-72,9 kW

Radiator Heating: 26 kW

Min.-Max. Hot Water Flow Rate : 96-1086 l/h

Min.-Max. Flow Temperature : 50- 90 °C

Nominal Pressure : PN 10

Min. Required Differential Pressure : 35 kPa (**)

SECONDARY CIRCUIT

Maximum Flow Rate : 1800 l/h

DHW Circuit Temperature : 10/60 °C

Space Heating Circuit Temperature : 50/70 °C

Nominal Pressure : PN 10
