- SPECIFICATIONS / USAGE AREAS
- • Steel Air& Dirt Separator product offers a solution by combining two functions in one product. Due to the dual function it is cost and installation space efficient.
- • If there are some limitations to install air and dirt separator separately the Steel Air& Dirt Separator series will be the ideal solution.
- • The efficient and continuous separation of air and impurities circulating in the heating
- system considerably increases the efficiency and service life of the whole system.
- • Simultaneously performs air seperator and dirt separator in the same unit. It automatically evacuates the air. Through its large reservoir, the cleaning period for sediment is long. Optional automatic residue discharge system can be applied.
- • Percentage of glycol in the heating system is maximum 50%.
- • The water flow rate is low at the bottom where the super strong magnet is located. Therefore, it can catch even the smallest parts.
- • When the discharge valve is opened, the magnet is removed and accumulated parts under the body are taken out. In order for the magnet to be removed easily, the Steel Magnetic Dirt Seperator must be mounted at least 30 cm above the ground.
Steel Magnetic Air&Dirt Separator
HS Code : 842121
Certificates :
Product Details

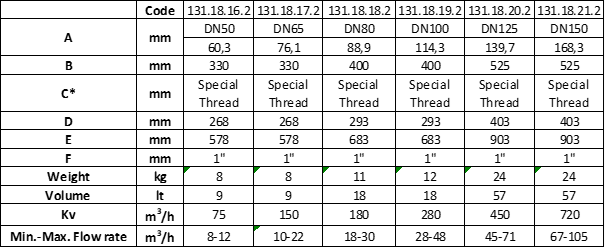

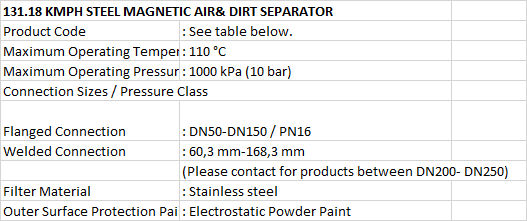

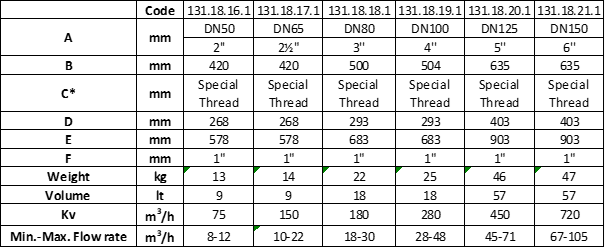

Technicial Specifications
