- AZURE
- Ceiling-type air handling units with high energy efficiency, advanced control capabilities, quiet operation, and plug-and-play functionality are designed for spaces where stale indoor air needs to be removed while providing fresh air.
- These units are compact in structure, designed for both botton and side dual-service orientation. Their ceiling installation eliminates the need for additional mechanical space, significantly increasing available commercial space in applications.
- -Optimized in 6 different models with a flow rate range of 150-3500 m³/h.
- -A compact design, well-suited for indoor building installation with insulated double wall casing.
- -Ideal solution for low-ceiling space applications.
- -Low internal pressure drop.
- -Both botton and side servicing options come as standard.
- -Standard bypass damper.
- -Integrated electric pre-heater and electric/water final heater options inside the unit casing.
- -External duct-type water cooler or DX cooler/heater module options.
- -Web-based and user-friendly selection software at www.aeraselect.com.
- -BIM files for Revit and MagiCad applications.
Product Details

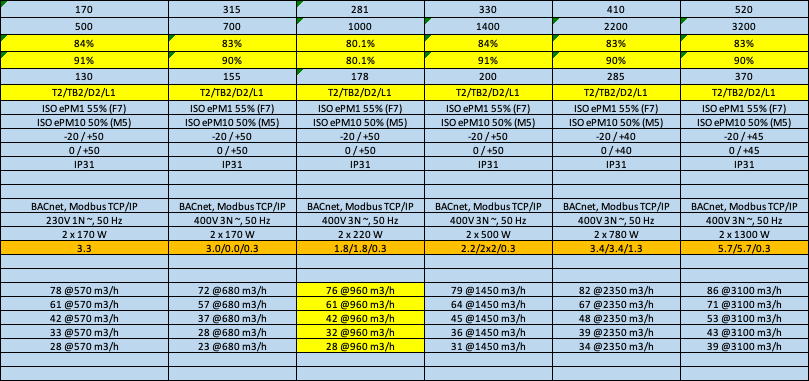

Technicial Specifications
Other products
About the Company
Contact
CASING
Inner sheets made of AZ 150 Aluzinc.
Outer sheets made of galvanized steel with powder coating
Insulated with 50 mm thick rock wool of 70 kg/m³ density.
Thermal transmittance T2,
Thermal bridging class TB2.
High air tightness
HEAT EXCHANGER
Counterflow heat recovery exchanger achieving up to 93% efficiency at nominal flow rates.
Standard By-pass damper
Free cooling capability.
Exceptional air tightness between fresh air and exhaust air flows.
FAN
Superior aerodynamic efficiency.
Low noise levels and energy consumption.
Plug fans with IE4 efficiency class EC motors.
Fan selection in compliance with ECO-DESIGN criteria.
AC-powered, DC motor technology for speed control.
FILTER
ECO-DESIGN compliant ePM1 55% (F7) class filter on the fresh air side, and ePM10 50% (M5) filters on the exhaust side, as standard.
Dynamic filter cloaking measurement.
Optional use of ePM1 80% (F9) filter for enhanced filtration performance.
PLUG-PLAY
Design-in every aspect
Integrated controls.
Simplified installation.
Swift commissioning.
Convenience in attic solutions with its low height,
CONTROLS & CONNECTIVITY
Constant air volume (CAV), variable air volume (VAV), and demand-controlled ventilation (DCV) options.
Optional indoor air quality control
Temperature control.
Humidity control.
Standard Bacnet IP or Modbus TCP/IP BMS connections, with future connectivity option LONWORKS
www.AERACLOUD.com Cloud Access
Dry contact communication with fire alarm panel.
