- EVO -C
- EVO-C units are meticulously engineered to meet the demands of spaces requiring increased fresh air intake, concurrently managing the removal of stagnant indoor air. The units embark a harmonious blend of sophistication and simplicity. With seamless controls, silent operation, and a plug-and-play principle, they embody an elegant solution. Their compact design allows for strategic placement, whether snugly positioned within the recesses of buildings or elegantly adorning vast open spaces, these units embody a versatile design that seamlessly fits various environments.
- With EVO-C units, air quality experience takes a next step with the ECO-DESIGN compliant filters, ensuring the purity of fresh air with ePM1 55% (F7) class filters, while the exhaust side boasts ePM10 50% (M5) filters as a standard feature. Benefit from dynamic filter cloaking measurement and elevate your air filtration even further with the optional use of ePM1 80% (F9) filters. Choose excellence in every breath.
- Optimized in 8 different models with flow rates between 300-8500 m³/h.
- Compact design.
- Suitable casing design for indoor and open-air environments.
- Low internal pressure drop.
- Slim design allowing passage through a standard door up to EVO 45-C model (D < 1000).
- Standard By-pass damper and optional recirculation damper.
- Integrated electric pre-heater and electric/water final heaters as accessories inside the units’ casing.
- Web-based and user-friendly selection software at www.aeraselect.com.
- BIM files available for Revit and MagiCad applications.
Product Details

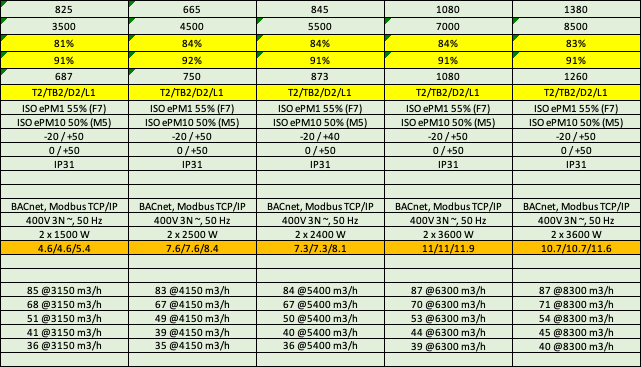

Technicial Specifications
Other products
About the Company
Contact
CASING
Inner sheets made of AZ 150 Aluzinc.
Outer sheets made of galvanized steel with powder coating
Insulated with 50 mm thick rock wool of 70 kg/m³ density.
Thermal transmittance T2,
Thermal bridging class TB2.
High air tightness
HEAT EXCHANGER
Counterflow heat recovery exchanger achieving up to 93% efficiency at nominal flow rates.
Standard By-pass damper.
Free cooling capability.
Exceptional air tightness between fresh air and exhaust air flows.
FAN
Superior aerodynamic efficiency.
Low noise levels and energy consumption.
Plug fans with IE4 efficiency class EC motors.
Fan selection in compliance with ECO-DESIGN criteria.
AC-powered, DC motor technology for speed control.
FILTER
ECO-DESIGN compliant ePM1 55% (F7) class filter on the fresh air side, and ePM10 50% (M5) filters on the exhaust side, as standard.
Dynamic filter cloaking measurement.
Optional use of ePM1 80% (F9) filter for enhanced filtration performance.
PLUG-N-PLAY Design-in every aspect
Integrated controls.
Simplified installation.
Swift commissioning.
Adjustable base feet for precise balancing.
CONTROLS & CONNECTIVITY
Constant air volume (CAV), variable air volume (VAV), and demand-controlled ventilation (DCV) options.
Optional indoor air quality control
Temperature control.
Humidity control.
Standard Bacnet IP or Modbus TCP/IP BMS connections, with future
connectivity option LONWORKS
www.AERACLOUD.com Cloud Access
Dry contact communication with fire alarm panel.
