- EVO-R TOP
- COMPACT VERTICAL DESIGN
- EVO-R TOP units are meticulously designed to cater to spaces requiring increased fresh air intake, simultaneously ensuring the effective expulsion of stagnant indoor air. They demonstrate remarkable energy efficiency reducing the HVAC equipment installed capacities and overall energy demand of buildings, incorporate advanced controls and seamless connectivity, silent operation, and provide a plug-and-play solution. Engineered with a compact structure and top duct connections, these units are specifically tailored to fit into limited spaces.
- Beyond meeting ventilation needs, they offer the flexibility to reduce mechanical volumes dedicated to climate control within buildings by around 40%, resulting in a substantial expansion of available commercial space. Whether discreetly concealed or integrated into confined areas, these units epitomize a harmonious blend of functionality and space optimization.
- Optimized across a range of 480-10000 m³/h,
- Compact vertical design with insulated double Wall casing, suitable for seamless integration into indoor spaces.
- A dividable casing structure allowing easy access to mechanical volumes, accommodating passage through a standard door for all models.
- An ideal solution for applications with low operating costs, featuring low internal pressure drop.
- Options for external duct-type electric pre-heater, electric/water after heater.
- Additional options include external duct-type water or DX cooler modules.
- Incorporates Sorption-type heat recovery rotor for enhanced efficiency in high-temperature and high-humidity conditions.
- User-friendly web-based selection software accessible at www.aeraselect.com.
- BIM files available for Revit and MagiCad applications.
Air Handling Unit
HS Code : 841583
Certificates :
Product Details

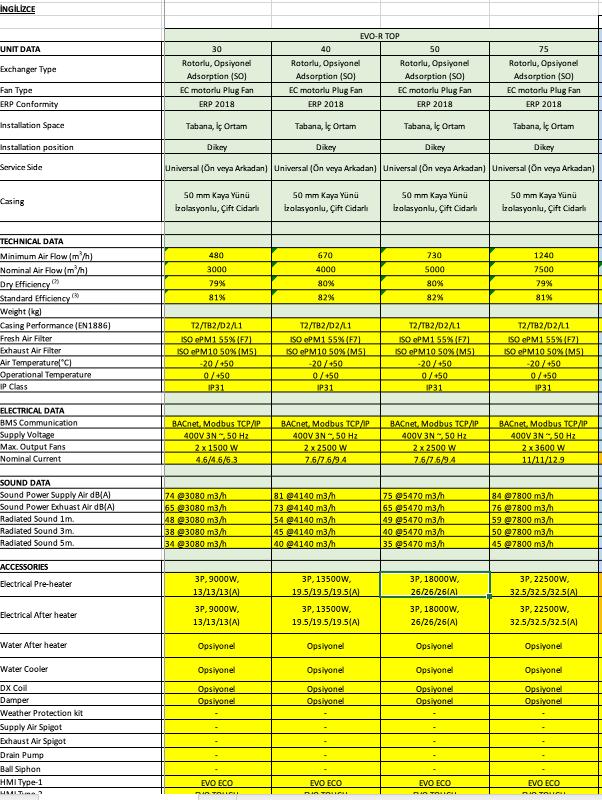

Technicial Specifications
Other products
About the Company
Contact
CASING
Inner sheets made of AZ 150 Aluzinc.
Outer sheets made of galvanized steel with powder coating
Insulated with 50 mm thick rock wool of 70 kg/m³ density.
Thermal transmittance T2, Thermal bridging class TB2.
High air tightness
HEAT EXCHANGER
Utilizes a SORPTION-type heat recovery rotor achieving up to 89% Enthalpy efficiency at nominal air flows
Proportional rotor speed control unit with 0-100% speed control thanks to its unique step control and drive-belt system.
Provides free cooling for enhanced energy efficiency.
Secures a robust airtightness between fresh air and exhaust air streams, enhancing overall system performance with unparalleled precision.
FAN
Superior aerodynamic efficiency.
Low noise levels and energy consumption.
Plug fans with IE4 efficiency class EC motors.
Fan selection in compliance with ECO-DESIGN criteria.
AC-powered, DC motor technology for speed control.
FILTER
ECO-DESIGN compliant ePM1 55% (F7) class filter on the fresh air side, and ePM10 50% (M5) filters on the exhaust side, as standard.
Dynamic filter cloaking measurement.
Optional use of ePM1 80% (F9) filter for enhanced filtration performance.
PLUG-PLAY
Design-in every aspect
Integrated controls.
Simplified installation.
Swift commissioning.
Adjustable base feet for precise balancing.
CONTROLS & CONNECTIVITY
Constant air volume (CAV), variable air volume (VAV), and demand-controlled ventilation (DCV) options.
Optional indoor air quality control
Temperature control.
Humidity control.
Standard Bacnet IP or Modbus TCP/IP BMS connections, with future connectivity option LONWORKS
www.AERACLOUD.com Cloud Access
Dry contact communication with fire alarm panel.
