- EVO-R
- EVO-R units are meticulously engineered to meet the demands of spaces requiring increased fresh air intake, concurrently managing the removal of stagnant indoor air. The units embark a harmonious blend of sophistication and simplicity. With seamless controls, silent operation, and a plug-and-play principle, they embody an elegant solution. Their compact design allows for strategic placement, whether snugly positioned within the recesses of buildings or elegantly adorning vast open spaces, these units embody a versatile design that seamlessly fits various environments.
- With EVO-R units, air quality experience takes a next step with the ECO-DESIGN compliant filters, ensuring the purity of fresh air with ePM1 55% (F7) class filters, while the exhaust side boasts ePM10 50% (M5) filters as a standard feature. Benefit from dynamic filter cloaking measurement and elevate your air filtration even further with the optional use of ePM1 80% (F9) filters. Choose excellence in every breath.
- EVO-R units offer precise control and customization with the CONTROL & CONNECTIVITY features. Choose from constant air volume (CAV), variable air volume (VAV), or demand-controlled ventilation (DCV) options. Enhance indoor air quality with optional controls, ensuring comfort with temperature and humidity adjustments. Seamlessly integrate into your Building Management System (BMS) with standard Bacnet IP or Modbus TCP/IP connectivity. Additionally, ensure safety through dry contact communication with fire alarm panels. Elevate your control capabilities with ease.
- EVO-R units provide optimal efficiency with the Rotary type Heat Exchanger featuring an ADSORPTION option.
- This innovative technology achieves up to 89% Enthalpy efficiency at nominal flow rates, ensuring effective heat recovery.
- The 0-100% proportional rotor speed control unit allows precise adjustments for tailored performance and benefit from free cooling capabilities that enhance overall energy efficiency.
- Moreover, with its unique purge sector and gasket design, EVO-R units feature airtightness between fresh air and exhaust air flows, securing seamless operation in ventilation system.
- Optimized in 9 different models with flow rates between 800-15000 m³/h.
- Compact design.
- Casing design suitable for both indoor and outdoor installations.
- Ideal solution for applications with low operating costs.
- Low internal pressure drop.
- Easy access to mechanical spaces within the interior due to the dividable casing structure.
- Integrated electric pre-heater and electric/water final heater options within the unit casing.
- Option for external channel-type water or DX cooler module.
- High-temperature and high-humidity efficiency with Sorption-type heat recovery rotor.
- User-friendly web-based selection software at www.aeraselect.com.
- BIM files available for Revit and MagiCad applications.
- State-of-the-art Controls and Connectivity.
Product Details

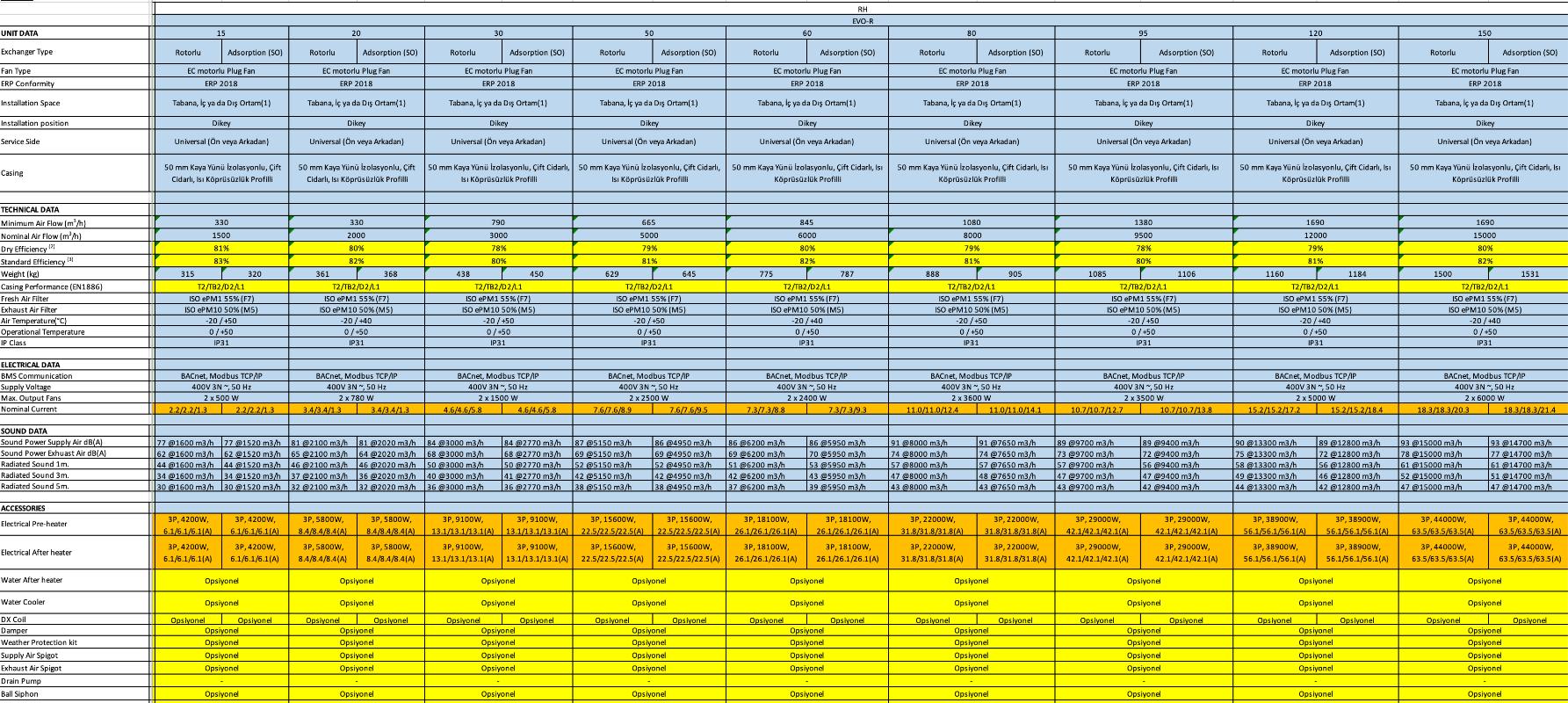

Technicial Specifications
Other products
About the Company
Contact
CASING
Inner sheets made of AZ 150 Aluzinc.
Outer sheets made of galvanized
steel with powder coating
Insulated with 50 mm thick rock
wool of 70 kg/m³ density.
Thermal transmittance T2,
Thermal bridging class TB2.
High air tightness
HEAT EXCHANGER
Utilizes a SORPTION-type heat recovery rotor achieving up to 89%
Enthalpy efficiency at nominal air flows
Proportional rotor speed control unit with0-100% speed control thanks to its unique step control and drive-belt system.
Provides free cooling for enhanced energy efficiency.
Secures a robust airtightness between fresh air and exhaust air streams, enhancing overall system performance with unparalleled precision.
FAN
Superior aerodynamic efficiency.
Low noise levels and energy consumption.
Plug fans with IE4 efficiency class EC motors.
Fan selection in compliance with ECO-DESIGN criteria.
AC-powered, DC motor technology for speed control.
FILTER
ECO-DESIGN compliant ePM1 55% (F7) class filter on the fresh air side, and ePM10 50% (M5) filters on the exhaust side, as standard.
Dynamic filter cloaking measurement.
Optional use of ePM1 80% (F9) filter for enhanced filtration performance.
PLUG-N-PLAY
Design-in every aspect
Integrated controls.
Simplified installation.
Swift commissioning.
Adjustable base feet for precise balancing.
CONTROLS & CONNECTIVITY
Constant air volume (CAV), variable air volume (VAV), and demand-controlled ventilation (DCV) options.
Optional indoor air quality control
Temperature control.
Humidity control.
Standard Bacnet IP or Modbus TCP/IP BMS connections, with future connectivity option LONWORKS
www.AERACLOUD.com Cloud Access
Dry contact communication with fire alarm panel.
