Name: Air Cooled Condenser
Brand: AZAK HEAT EXCHANGERS
Availability: InStock

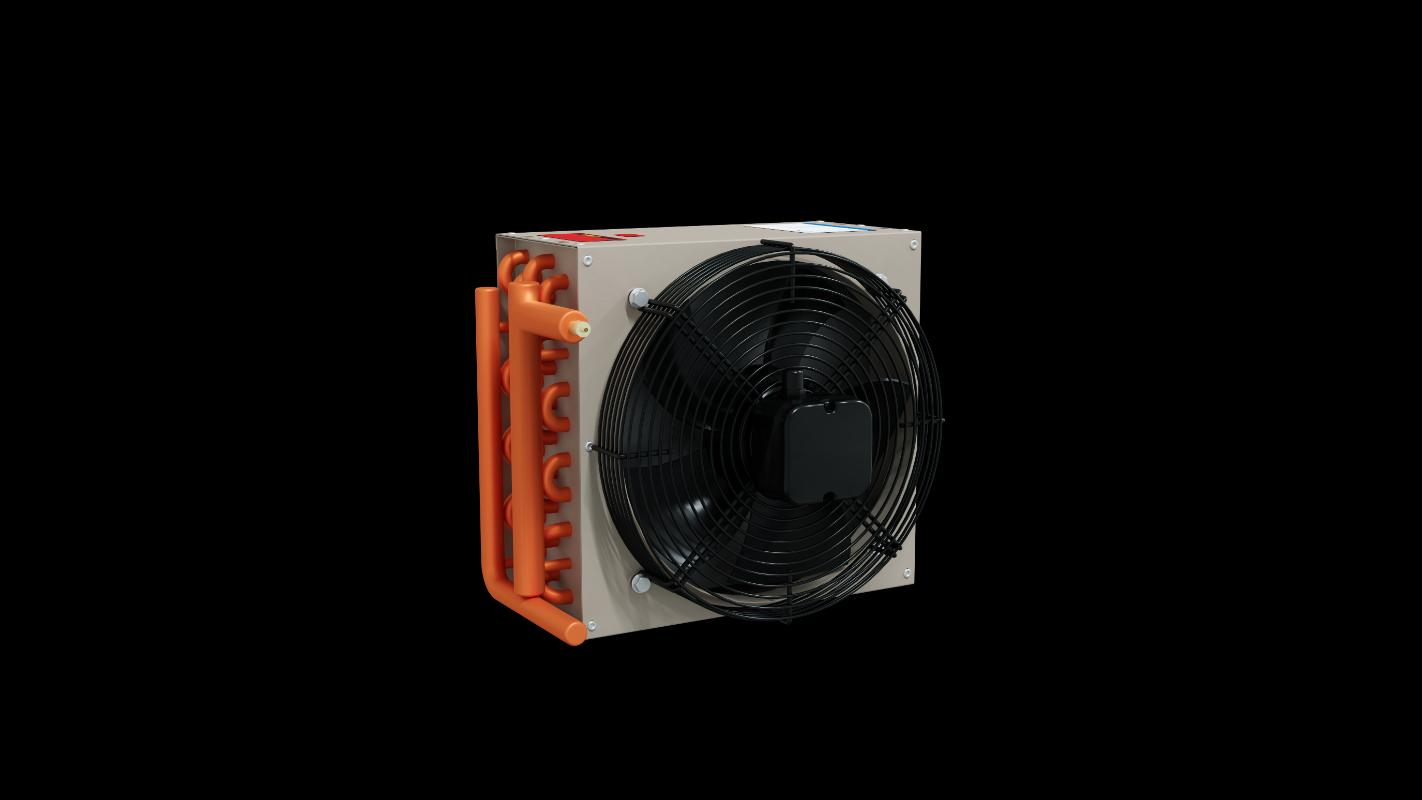

AS and AK SERIES CONDENSERS

AS and AK series high performance condensers are manufactured with copper tubes, corrugated aluminium fins which improve heat transfer coefficient.

Tubes

3/8" (thickness 0,35 mm) copper tubes designed as crosswise, AS series mould geometry 25x22 manufuctured as staggared, AK series mould geometry 32x28 manufuctured as staggared.

Fins

Fins has been manufuctured corrgated 0,12 mm aluminium. AS series can be used as windowed surface on condensers for special orders. Lamellar spacings are produced between 1.8 - 4 mm.

Casing

supporting structure is made of galvanized sheet. Electrostatically powder coated. Color standart RAL 7044 that provides excelent corrosion protection.

Test

All coils are tested with perssurized 24 - 28 bars, coils are provited with 3 bars nitrogen loaded in.

Fans

Condensers provided without fans. The special orders produced with Ø200 - Ø250 - Ø300 - Ø350 - Ø400 - Ø450 - Ø500- Ø630 mm diameter fans.

AZAK HEAT EXCHANGERS

AZAK was established in Konya (1979). First of all it had produced refrigerator. Afterwards it went on to produce the evaporator of refrigerators for commercial system in 1983.

It incorparated and was called as Azak Industry and Trade Inc. Since 2000s we can produce :

- Air-cooled condensers

- Refrigerant evaporators

- Hot and cold water accumulators

- Hot and cold steam accumulators

- Fluid coolers

- Dry coolers

It can produce as per order condenser evaporator. Thus it is called as a reformer, leader, reliable factory in that sector.

We make production according to International organization for standardization 9007-2015 and for our factory, it is the most important principle which include in customer delight. It expands machine park with the last modern technology. It works up the production and the range of products.

With the aim of attaining a top level position in the market, serving products with fair price and highest quality, and orders prepared right on time,Extending its product range, with the aim of increasing competitive power that focused on customer satisfaction worldwide, Adopting staff safety, product quality and customer contentment as a principle, Following the latest technology and innovations in the market in terms of all staff bases, attaining top level quality in staff training.

Azak has with an area of 10.000 square meter in Konya. The quality of our products and services are the quality of our employees. It serves in both domestic and foreing refrigeration sector with its expert team.
