Name: Evaporator
Brand: AZAK HEAT EXCHANGERS
Availability: InStock

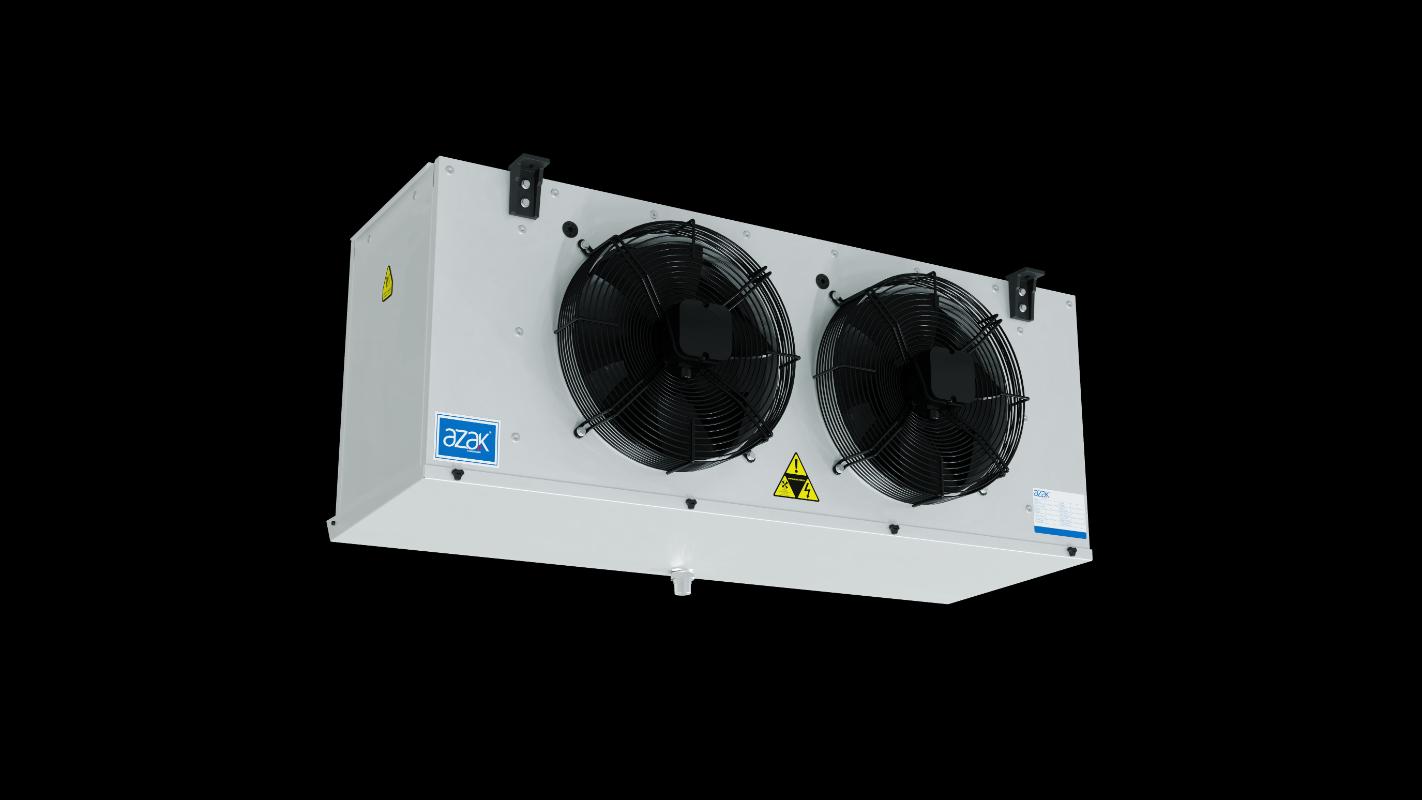

CUBIC SERIES STANDARD UNIT AIR COOLERS

AEK,AEY,AEB and SO series high performance standard unit air coolers are manufactured with copper tubes, corrugated aluminium fins which improve heat transfer coefficient.

Tubes

3/8”, 1/2"(thickness 0,35 mm) and 5/8"(thickness 0,40 mm) copper tubes designed as crosswise, geometry 32X28,40x35 and 55x48 manufuctured as staggared.

Fins

Fins has been manufuctured corrgated 0,12 - 0,20 - 0,25 mm aluminium. Lamellar spacings are produced between 4 - 6 - 8 - 10 mm.

Casing

Manufactured from galvanized steel. Cubic series standard RAL 9010, room coolers, Electro-Static painted with powder coating.

Test

All coils are tested with pressurized 24 - 28 bars, coils are provited with 3 bars nitrogen loaded in.

Fans

Standard unit air coolers provided without fans. The special orders produced with Ø300 - Ø350 - Ø400 - Ø450 - Ø500 mm diameter fans

AZAK HEAT EXCHANGERS

AZAK was established in Konya (1979). First of all it had produced refrigerator. Afterwards it went on to produce the evaporator of refrigerators for commercial system in 1983.

It incorparated and was called as Azak Industry and Trade Inc. Since 2000s we can produce :

- Air-cooled condensers

- Refrigerant evaporators

- Hot and cold water accumulators

- Hot and cold steam accumulators

- Fluid coolers

- Dry coolers

It can produce as per order condenser evaporator. Thus it is called as a reformer, leader, reliable factory in that sector.

We make production according to International organization for standardization 9007-2015 and for our factory, it is the most important principle which include in customer delight. It expands machine park with the last modern technology. It works up the production and the range of products.

With the aim of attaining a top level position in the market, serving products with fair price and highest quality, and orders prepared right on time,Extending its product range, with the aim of increasing competitive power that focused on customer satisfaction worldwide, Adopting staff safety, product quality and customer contentment as a principle, Following the latest technology and innovations in the market in terms of all staff bases, attaining top level quality in staff training.

Azak has with an area of 10.000 square meter in Konya. The quality of our products and services are the quality of our employees. It serves in both domestic and foreing refrigeration sector with its expert team.
