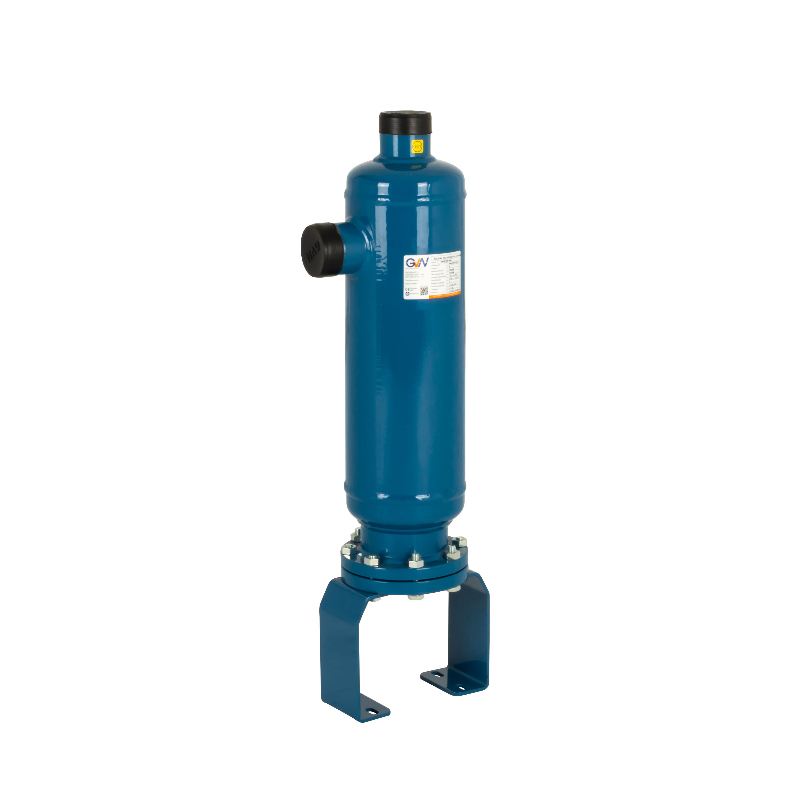

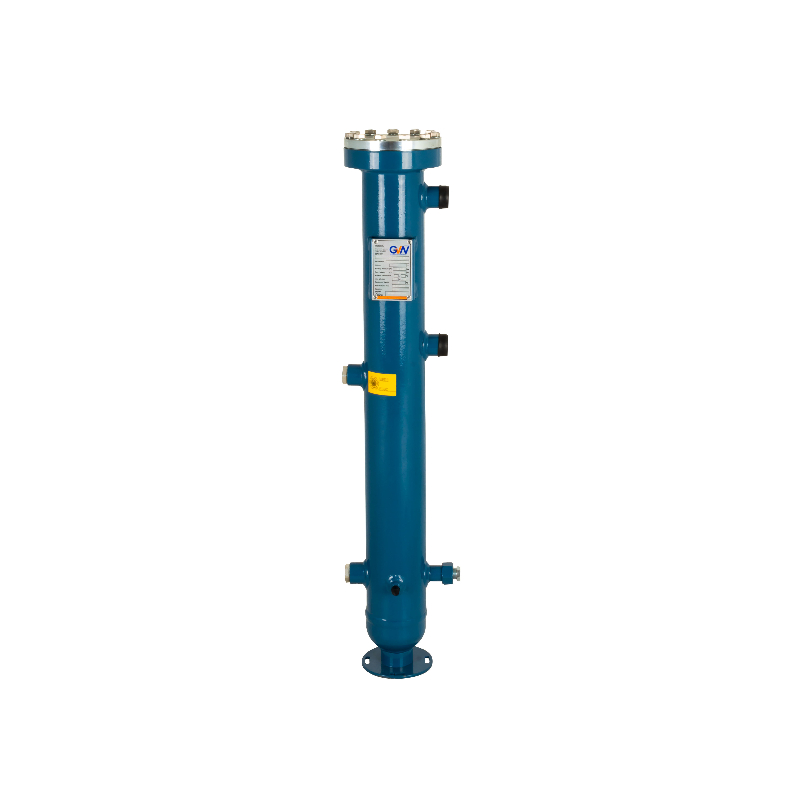

Oil Separator

The task of conventional oil separators is to separate oil from discharge refrigerant correctly and ensure oil return to the compressor most effectively. The purpose is maintaining crankcase oil level and increasing the efficiency of the system by minimizing excessive oil circulation.

Application Field

It is strongly recommended to use oil separators under the following conditions:Low evaporation temperature applications, capacity controlled systems,parallel connected compressors, flooded evaporators, blast freezer, two-stage compressors, cascade systems, long line systems.

Selection

Oil separator selection is made according to the refrigeration technical rules and oil separator connections must not have smaller diameter than discharge line size.

Technical Specification

Conventional oil separators have float system inside.

Float system;

• Passes through highly sensitive production process,

• Stainless steel and brass raw materials are used,

• Any contamination which may occur in the system can be easily caught by magnet in float system at oil outlet, thus it ensures that valves operates in cleaner environment.

On standard products;

• ODS connections are used for inlet & outlet,

• Oil return connection 3/8” SAE is used as standard,

• (OS.F) Cleaning and controlling is very easy thanks to demountable flange,

• (OS.F) Active parts may be replaced when needed,

It is produced in accordance with CE 2014/68/EU [PED] pressure equipment directive,

Warning

• Please ensure that the float system is not damaged and it is working properly.

• (OS.F) Before installing flange connection, ensure that O-ring channel is clean and not damaged. Place the O-ring into the channel correctly and mount by tightening bolts with equal torque.
