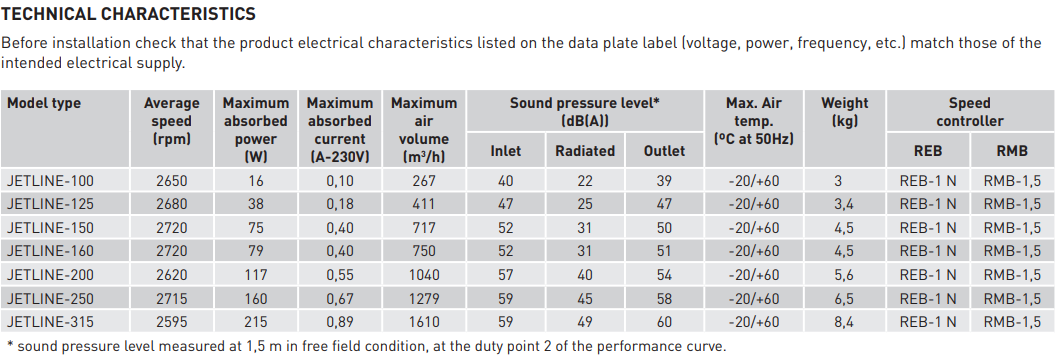

Technicial Specifications
Other products
About the Company
Contact
Range of in-line fans for circular ducts, designed for high aerodynamic performances with a very compact profiles and very low sound levels.The range comprises 7 diameters and covers a flow range from 260 to 1080 m3/h.
Low profile compact casing manufactured from galvanised sheet steel. The terminal box and the mounting bracket do not increase the product’s profile.Optimised design of the impeller, guide vane and outlet diffuser, manufactured from injection moulded plastic, to increase performance and lower the sound level.
Airtight joint between the galvanised steel casing and the plastic guide vane to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts. Silent block between the motor and the holder to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
JETLINE models with 220-240V 50/60Hz motor
Fitted with an external rotor single-phase AC motor:
- Class F, IP 44
- Speed controllable by voltage.
- Thermal protection with manual reset.
- Working temperature: -20/60 ºC
JETLINE models with 120-127V 60Hz motor
Fitted with an external rotor single-phase AC motor:
- Class F, IP 44
- Speed controllable by voltage.
- Thermal protection with manual reset.
- Working temperature: -20/60 ºC
