Duct Fan
- IN-LINE RECTANGULAR DUCT FANS
- IRB/IRT SERIES
Product Details

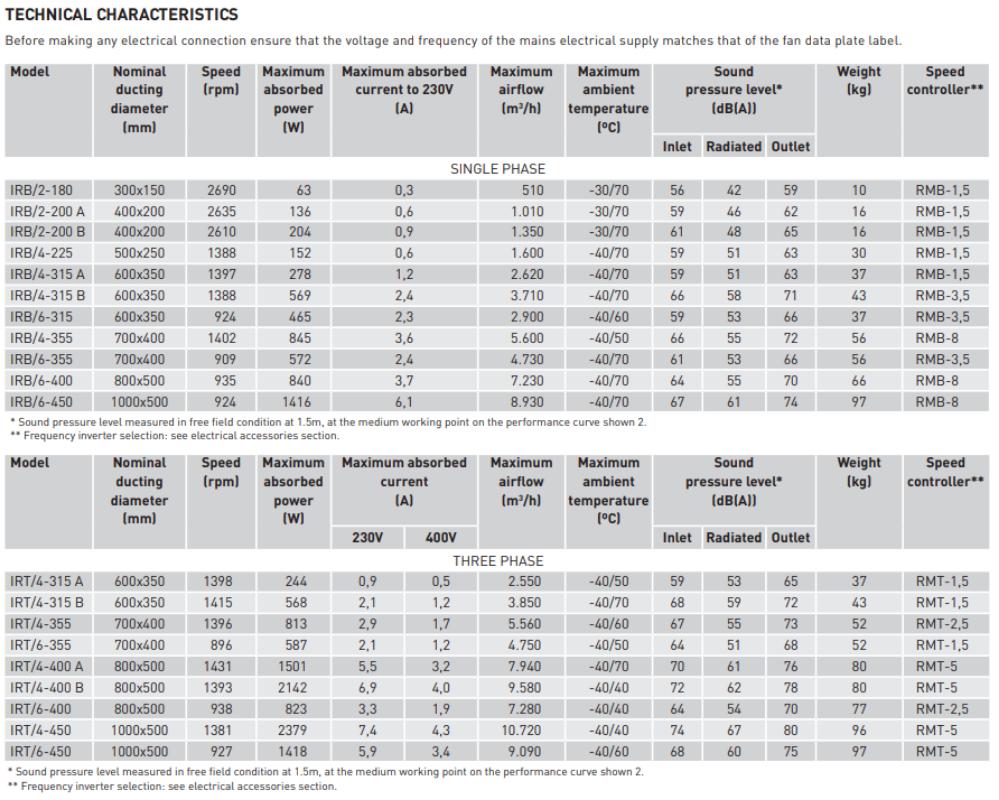

Technicial Specifications
Other products
About the Company
Contact
Range of rectangular duct fans suitable for many general ventilation applications where the fan is required to be installed within a rectangular ducted ventilation system or where the space for installation is limited.
High performance centrifugal fans.
All models suitable for mounting in any orientation.
Casing manufactured from heavy gauge galvanised sheet steel.
Direct drive backward curved impellers manufactured from aluminium sheet.
External rotor motor, Class F insulation with thermal protection.
Remote terminal box.
Motors
Motor and impeller fitted on the inspection cover enabling easy cleaning and maintenance.
- IRB models: Single-phase 230V-50Hz.
IP44* or IP54. Speed controllable by transformer.
- IRT models: Three-phase 230/400V-50Hz.
IP54. Speed controllable by transformer or frequency drive.
* IP44: 2-180, 2-200, 4-225 and 4-315 A
S&P AFS HAVALANDIRMA SİSTEMLERİ AŞ.
Our brand
Our brand S&P has achieved worldwide recognition, thanks to our staff, quality and reliability, and innovation. The philosophical principles on which S&P was founded, and which are maintained to this day, are:
Proprietary technology:
For the S&P project to be strong and consolidated over time, it was necessary that it be based on creativity and providing distinctive products, avoiding imitation of the competition. Over the company’s history, S&P has registered 182 patents, more than 59 industrial models and 4 utility models.
Internationalisation and Growth:
It was clear that in order to ensure the company’s future we had to open up to the world and to enter new, highly competitive markets. This has led us to carry out on-going improvements to our products. S&P is currently a world leader in ventilation, with production centres in Europe, America and Asia. A powerful distribution structure, through subsidiaries and exclusive distributors, allows S&P to be present in all world markets with both products and service.
Self-financing:
One of the strengths of S&P has been our constant growth and policy of reinvesting profits in on-going technological improvements, both in research and production and in marketing. This has allowed S&P to be a self-financed company with complete independence in our decision-making process.
