Duct Fan
- CENTRIFUGAL IN-LINE FANS
- JETLINE ECOWATT SERIES
Product Details

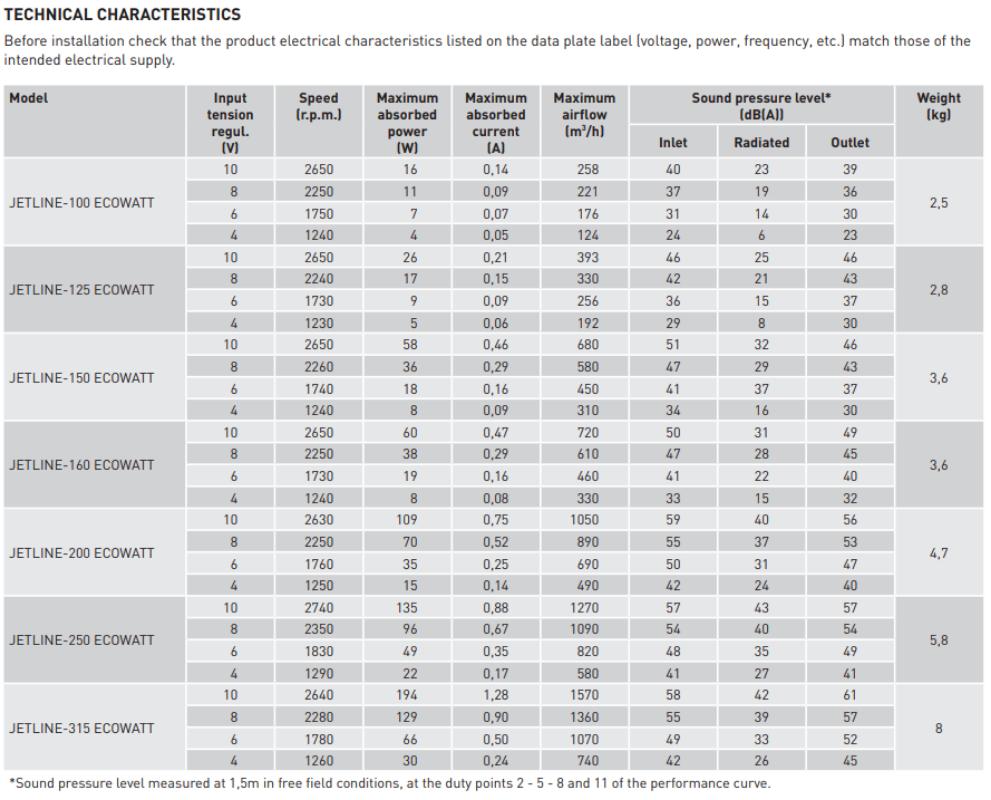

Technicial Specifications
Other products
About the Company
Contact
Range of in-line fans for circular ducts, designed for high aerodynamic performances with a very compact profiles and very low sound levels.
Low profile compact casing manufactured from galvanised sheet steel. The terminal box and the mounting bracket do not increase the product’s profile. Optimised design of the impeller, guide vane and outlet diffuser, manufactured from injection-moulded plastic, to increase performance and lower the sound level.
Airtight joint between the galvanised steel casing and the plastic guide vane to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts. Silent-block between the motor and the holder to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation. IP65 terminal box allowing outdoor installation.
Motor
Fitted with an external rotor brushless EC motor:
- 230V ± 10% 50/60Hz, IP44.
- 100% speed controllable via internal potentiometer located in the terminal box or via 0-10V external signal.
- Ball bearings and thermal protection with manual reset.
- Working temperature: -20/40 ºC
