Heat Recovery Unit
- COUNTER-FLOW, HIGH-EFFICIENCY HEAT RECOVERY UNIT
- DOMEO 210 SERIES
Product Details

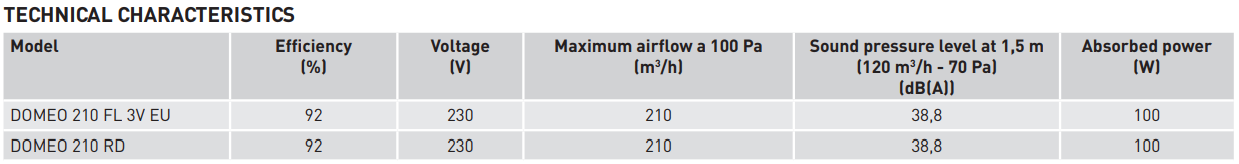

Technicial Specifications
Other products
About the Company
Contact
Whole house heat recovery unit with a high-efficiency heat exchanger up to 92% setting and very low consumption EC motor.
Provides a constant supply of fresh tempered air into the living spaces of a house.
Domeo can communicate with home automation system via Modbus or other gateway protocols.
To optimise energy consumption and air quality, it can be conected to a CO2 or humidity sensor and others.
Domeo 210 is fitted with a 100% bypass and it is equipped with F7 or M5 filter at the inlet and with G4 filter at the outlet to protect the heat exchanger.
Includes remote control, allowing adjustment of boost (in RD), by-pass and reset of clogged filters.
Versions
- DOMEO 210 FL 3V EU: Wired remote control.
- DOMEO 210 RD: Wireless remote control (by radiofrequency). Constant airflow motor.
Features
- Counter-flow heat exchanger with up to 92% thermal efficiency
- Low-consumption EC motor
- Centrifugal backward curved impeller
- Modbus communication
- EPP body
- Nozzles Ø125 mm
- 100% automatic or manual bypass
- Manual boost mode (RD models)
- Inlet filters: F7 (ISO ePM1 65%, at 210 m3/h). Option, M5 (ISO ePM10 50%, at 210 m3/h).
- Extraction filter G4 (ISO coarse 65%, at 210 m3/h).
