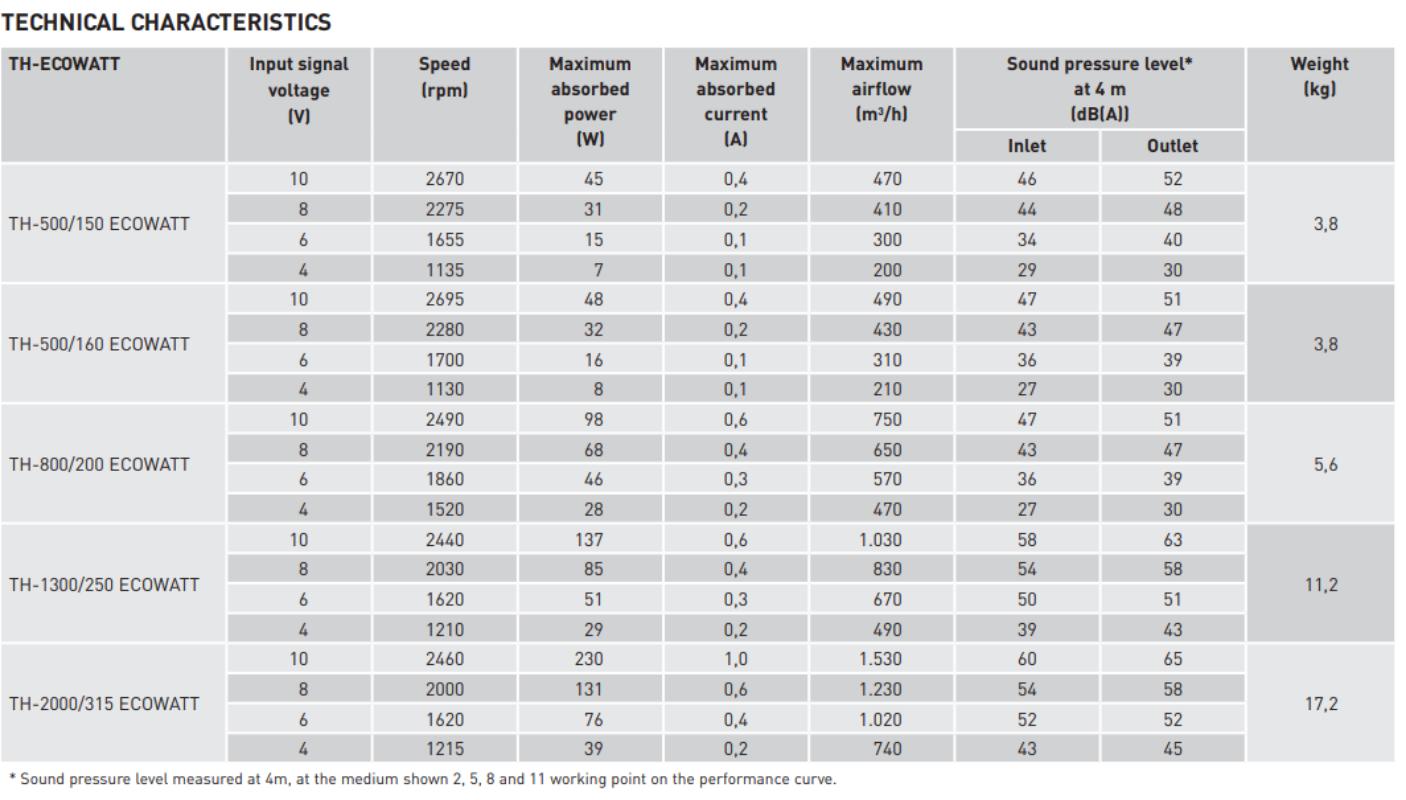

Technicial Specifications
Other products
About the Company
Contact
Roof mounted mixed flow fans, low energy consumption.
-Models 500 and 800:
Body injection moulded in thermoplastic material. Base and cowl made of sheet steel, protected against corrosion by black polyester coating.
-Models 1300 y 2000:
Body and base made of sheet steel with an aluminium cowl, all protected against corrosion by black polyester coating.
All models incorporate a bird guard and base cable gland entry point as standard.
The motor and impeller casing can be easily removed by 2 fixing clamps.
Motors
-Models 500 and 800:
Brushless DC motor, high performance and low energy consumption, power supply: 90/260V-50/60Hz, IP44, ball bearings, thermal protection.
-Models 1300 and 2000:
Brushless EC motor, high performance and low energy consumption, power supply 230V±15% 50/60Hz, IP44, ball bearings, thermal protection.
With a built in potentiometer to adjust the speed from 10 to 100%, analogue input to control the fan with a 0-10V signal. Working temperature from -20ºC to +60ºC.
Additional information
Supplied, in the standard version, as extractors. The motor and impeller casing can be removed and turned through 180º to provide supply air ventilation.
