Duct Fan
- LOW-PROFILE IN-LINE RECTANGULAR DUCT FANS
- IRB/IRT-ECOWATT SERIES
Product Details

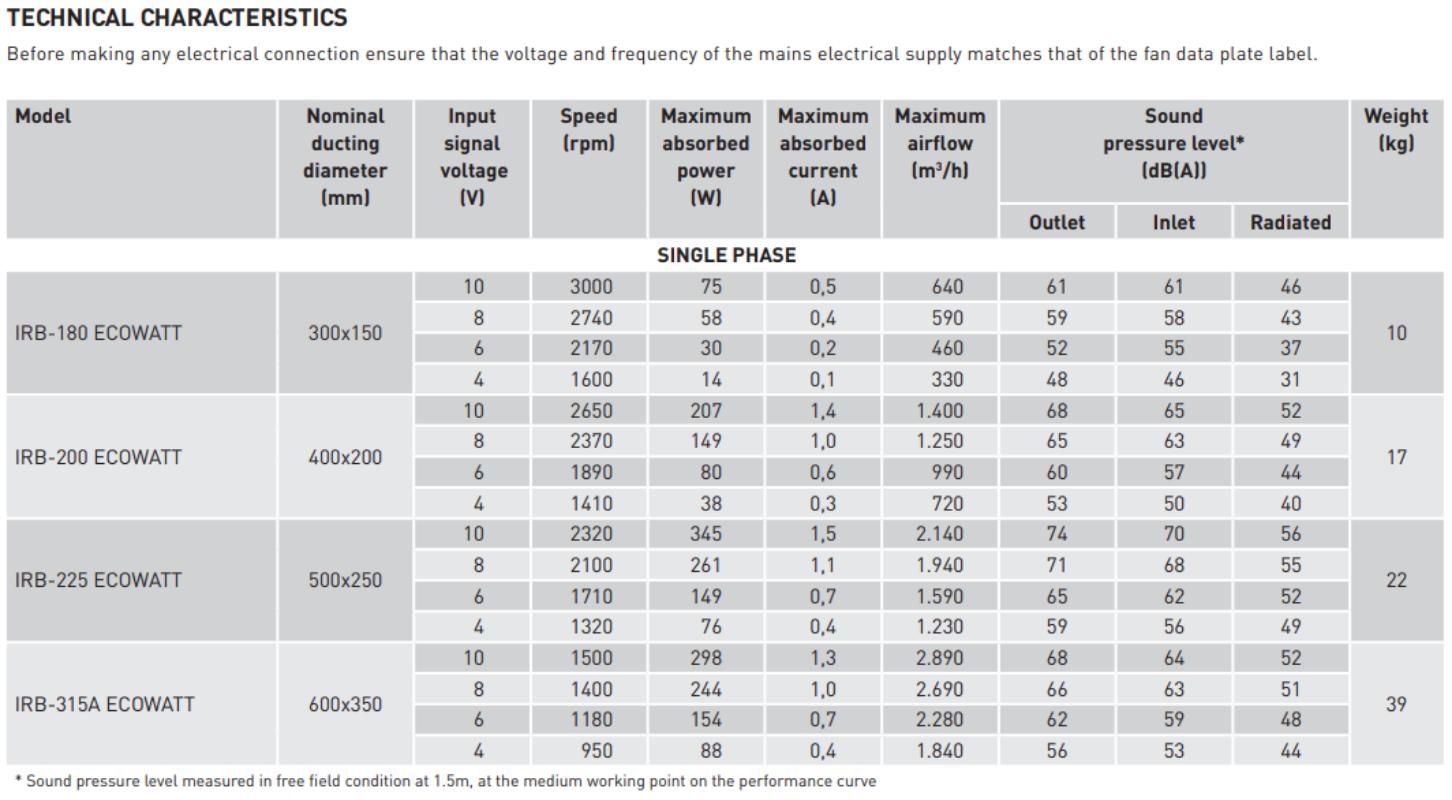

Technicial Specifications
Other products
About the Company
Contact
Range of low-profile rectangular duct fans with high-quality features, specially designed for rectangular ducts, manufactured from galvanized steel, cover for inspection and cleaning, remote terminal box, IP55, centrifugal fan with backward curved impeller, dynamically balanced.
Motors
EC Brushless motor of high-efficiency and low-consumption, supply power, IP44, ball bearings, thermal protection and able to work at temperatures from -20ºC to +40ºC:
- Single-phase models 230V±10%, 50/60Hz, IP44.
- Three-phase models 400V±10%, 50/60Hz, IP54.
Speed 100% controllable by Potentiometer located in the terminal box or via external control like REB-ECOWATT. Analogue input to control the fan via external signal 0-10V.
